Waters ACQUITY™ Arc™ LC Stock Clearance
UVISON Technologies offer a range of competitive & flexible RENTAL, LEASING & PURCHASE options for Waters HPLC systems (including UHPLC & UPLC). We currently have an number of brand new ACQUITY™ Arc™ Systems that we are looking to clear from our stock, with discounted prices and quick delivery available!
Stock systems come with a quat. solvent manager, 30cm column heater & either UV-vis or PDA detector, but other configurations are available on request! For software control, the systems can be supplied with a licence for Empower3 or integrated directly into your existing CDS infrastructure.

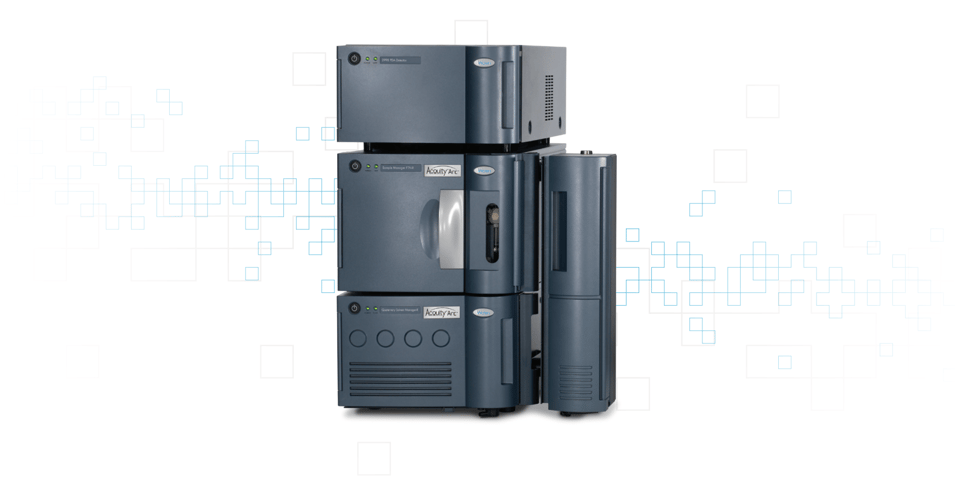

Learn more about the ACQUITY™ Arc™ System below, or contact me for pricing options on your laboratory's next LC system!Waters ACQUITY™ Arc™ System
The method development process is changing as a result of new regulations. In addition, software and analytical technologies are rapidly changing how methods are designed, transferred and monitored over their lifecycle. To help with this, the an all-in-one ACQUITY™ Arc™ platform for HPLC and UHPLC is designed to meet the spectrum of challenges faced in labs, from robust method development to seamless transfer between any modern LC system.
DESIGNED FOR DISCOVERY TO ROUTINE QC APPLICATIONS
The ACQUITY™ Arc™ System is the only LC with regulatory compliant-ready hardware & software for both HPLC and UHPLC separations in a single instrument. It has unrivalled column capacity and Arc Multi-flow path™ technology to generate new methods and modernise legacy HPLC methods faster than ever before.
- Go from HPLC to UHPLC with the flip of a switch - Easily switch between HPLC and UHPLC operation with multi-flow technology to with optimised dwell volumes for both modes.
- Simplify your daily set-up - Fully automate your daily system start-up, including system priming and equilibration, with Empower 3 Software. Get real-time information on all of system components in one location, with a simple and intuitive interface using the ACQUITY Console.
- Speed mobile phase preparation with more repeatability - Reduce the time it takes to prepare mobile phases while improving the day-to-day repeatability of your preparations by preparing your pH buffers online from pure solvents with Auto Blend Plus Technology.
- Minimise carryover - Achieve ultra-low carryover (≤0.002%) by continuously cleansing the needle during the run with an advanced flow-through-needle (FTN) design.
- Achieve flexibility and stability for method development - Column manager options available for up to 15 columns ranging in length from 50 mm to 300 mm with a temperature range of 4 °C to 90 °C. Optional and integrated column selection valve provide fast, unattended column changeover.
- Provide stability for method transfer needs - Provide stable, uniform temperature management with integrated active pre-heating options to ensure method repeatability from lab to lab. Gradient SmartStart easily adjusts for system volume differences when transferring methods from an alternative LC system without alteration to the method table.
-
Comprehensive range of detectors - Our stock items are available with UV/Vis or PDA detectors, but additional detectors can be added, including RI, ELS and MS option (like the ACQUITY QDa™ Detector). The wide range of detectors maximises your HPLC and UHPLC performance with exceptional sensitivity and linearity.
System Specifications
Maximum operating pressure | 9500 psi (655 bar) | Solvent conditioning | Passive & active pre-heating |
pH range | 1-12.5 | Column tracking |
eCord Technology column information tracks and archives column usage |
Operating flow rate range | up to 5 mL/min | Column capacity | Up to 15 columns of 150 mm length and up to 4.6 mm I.D. |
Sample flow path | Stainless-steel | Maximum sample capacity | Up to 20 plates (with Sample Organizer) |
Sample carryover | <0.002% (caffeine) under UV conditions | Detector options | TUV, PDA, FLR, RI, ELS, EC |
Sample compartment | 4-40 °C | External control | Empower & MassLynx |
Pump options | Quaternary | Physical specifications (QSM-R or BSM-R, SM-FTN-R, 30cm CH) |
34.3 cm (13.5") x 71.1 cm (28.0") x 71.2 cm (28.0") WxHxD |
